As solar power technology continues to evolve, one of the key innovations that have revolutionized the way solar energy is captured is the introduction of solar tracking systems. These systems are designed to adjust the angle of solar panels throughout the day, allowing them to follow the sun’s path and maximize energy production. There are two main types of solar trackers: single axis and dual axis. Both tracking systems offer distinct advantages and drawbacks, but choosing between them depends largely on your specific energy needs, the geographical location of your solar setup, and your budget.
A solar tracker is a device that automatically moves solar panels to follow the sun’s movement across the sky. The sun rises in the east and sets in the west, and its position changes throughout the day, so solar panels need to be adjusted to keep them facing the sun in order to maximize their efficiency.
Solar trackers are typically classified into two types:
1. Single Axis Solar Trackers: These trackers move solar panels in one direction—either horizontally or vertically—to follow the sun’s path.
2. Dual Axis Solar Trackers: These trackers move solar panels in two directions—both horizontally and vertically—to keep them perpendicular to the sun at all times.
The main advantage of both types of trackers is their ability to increase the energy production of solar panels compared to fixed solar panel systems. However, they do so in different ways, which means that the choice between dual axis and single axis tracking systems can have a significant impact on the performance and efficiency of your solar setup.
Single axis solar trackers are designed to move solar panels along a single axis, either horizontally or vertically. These trackers typically rotate around a central pole that is mounted in the ground.
Horizontal Single Axis Trackers (HSAT): These trackers move the solar panels on a horizontal plane, following the sun’s path from east to west. The solar panels are tilted at a fixed angle and rotate around the pole to ensure they stay aligned with the sun’s position during the day.
Vertical Single Axis Trackers (VSAT): These trackers move the panels along a vertical axis, adjusting the tilt to follow the sun’s position at different times of the year. VSATs are typically used for installations at higher latitudes, where the sun’s position changes more dramatically between seasons.
The primary benefit of single axis trackers is their ability to maximize the capture of sunlight during the day by rotating the panels to follow the sun. While they don’t adjust the tilt of the panels as precisely as dual axis trackers, they still provide significant improvements in energy production compared to fixed solar panels.

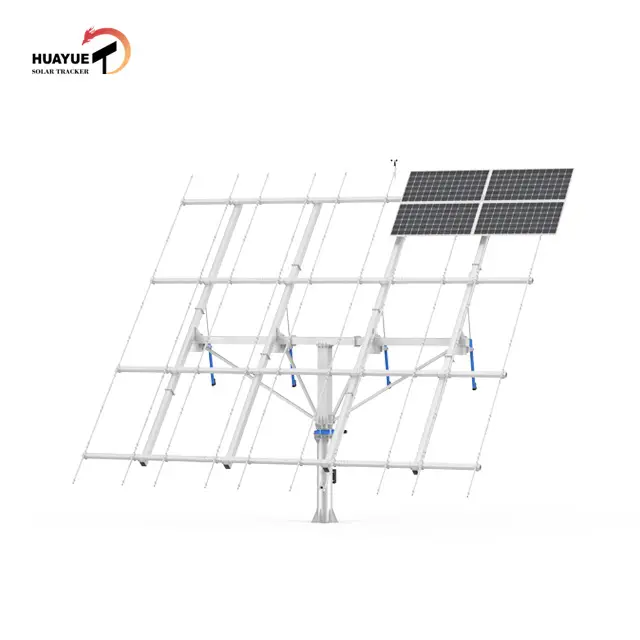

Dual axis solar trackers are more advanced than single axis trackers because they can adjust the orientation of the solar panels in two directions: horizontally and vertically.
Horizontal Movement: Like single axis trackers, dual axis trackers move the panels horizontally to follow the sun’s east-to-west path across the sky.
Vertical Movement: In addition to horizontal movement, dual axis trackers can also adjust the tilt of the panels to follow the sun’s changing altitude throughout the year. This means the panels are always positioned at the optimal angle to capture the most sunlight, regardless of the time of day or season.
This ability to adjust in two directions makes dual axis trackers more precise and capable of providing higher energy production than single axis trackers. They can keep the solar panels facing the sun at a near-perfect angle throughout the day, optimizing the amount of sunlight captured.
One of the most significant factors when deciding between dual axis and single axis trackers is the amount of energy they can produce.
Single Axis Solar Trackers: Single axis trackers typically increase energy production by 25% to 35% compared to fixed systems. These trackers are a good option for locations that have a lot of sunlight but do not experience dramatic changes in the angle of the sun throughout the year. They are especially useful in regions where the sun’s path remains relatively consistent, such as areas near the equator.
Dual Axis Solar Trackers: Dual axis trackers can increase energy production by up to 40% to 45% compared to fixed solar panels. By adjusting the panels both horizontally and vertically, dual axis trackers ensure that the solar panels are always optimally aligned with the sun’s rays, leading to higher energy yields. These trackers are particularly beneficial in locations with seasonal changes in sunlight, as they can adjust for the sun’s varying height and angle throughout the year.
In general, dual axis trackers provide more energy than single axis trackers due to their greater flexibility and precision in tracking the sun.
When it comes to installation costs, single axis trackers are more affordable than dual axis trackers. This is because single axis trackers are simpler to design and install, with fewer moving parts and a more straightforward mechanism. As a result, the upfront capital investment for a single axis tracking system is lower, making it a good choice for projects with budget constraints.
On the other hand, dual axis trackers are more complex and expensive due to their added functionality. The installation process is more involved, and the trackers themselves require additional sensors, motors, and control systems to operate efficiently. While the increased cost may be a barrier for some, the higher energy production from dual axis trackers can result in a faster return on investment (ROI) over time, particularly for large-scale solar farms or installations in areas with significant seasonal sunlight changes.
Both single axis and dual axis solar trackers require maintenance to ensure optimal performance, but the dual axis system generally has more components and moving parts, which can increase the likelihood of wear and tear over time. This can lead to higher maintenance costs and a need for more frequent repairs.
In contrast, single axis trackers have fewer moving parts and are typically easier to maintain. However, the lower complexity also means they don’t offer the same level of precision and performance as dual axis trackers.
Dual axis trackers can be more space-efficient than single axis trackers, as they can achieve higher energy production on a smaller footprint. In contrast, single axis trackers often require more space to achieve similar levels of energy production because they track only in one direction.
However, dual axis trackers require careful consideration of land use, as their need for precise movement may restrict the overall area available for installation. Single axis trackers, by comparison, can be arranged in rows with less concern for movement limitations.
Single Axis Solar Trackers: These trackers are best suited for regions that experience consistent sunlight throughout the year and where the sun’s position doesn’t change drastically. Areas near the equator or regions with minimal seasonal changes are ideal for single axis systems.
Dual Axis Solar Trackers: These trackers are ideal for locations with significant seasonal variation in sunlight or those at higher latitudes. Dual axis systems are well-suited for areas where the sun’s position changes dramatically between seasons, such as locations in the northern or southern hemispheres with long winters and summers.
Both single axis and dual axis solar trackers offer significant advantages over fixed solar panels, but each comes with unique trade-offs. Single axis trackers are cost-effective and ideal for maximizing energy production, while dual axis trackers provide higher energy efficiency, especially in regions with varying sunlight conditions. The choice depends on your energy goals, budget, and location. Both systems outperform traditional fixed panels, ensuring improved energy production. For advanced solar tracking solutions, Shandong Huayue New Energy Co., Ltd. offers high-performance products tailored to your needs. Visit www.huayuetracker.com to explore their innovative solar tracker solutions.
