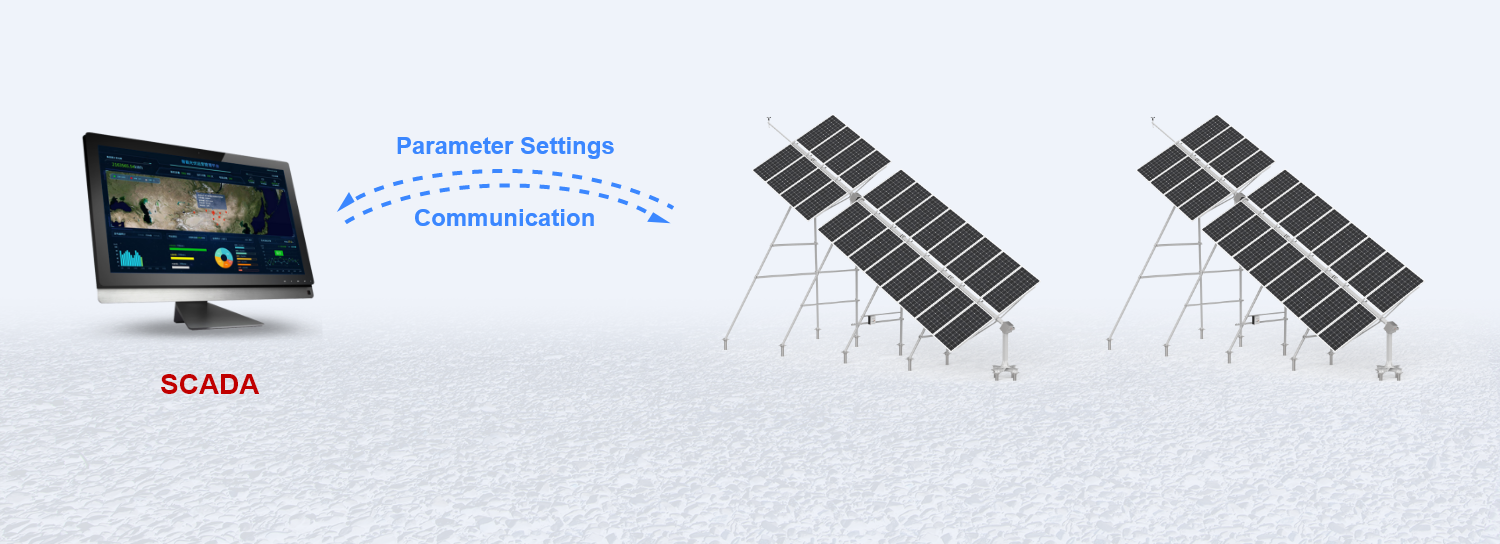

-SCADA

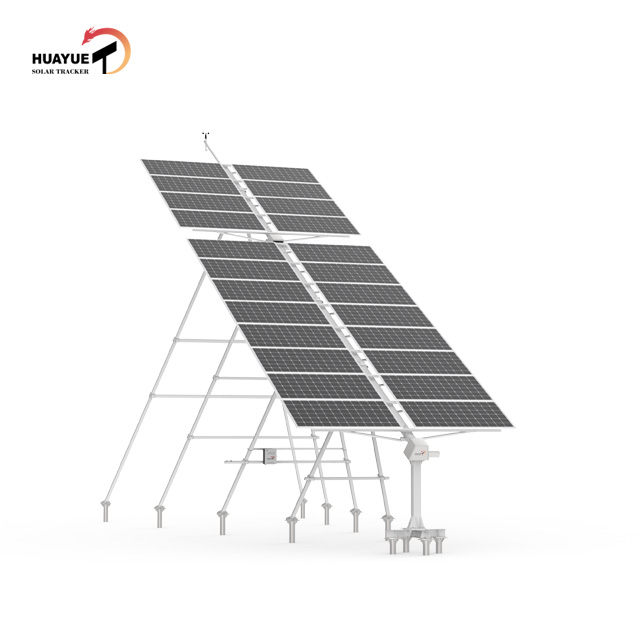

-Smart Tracking

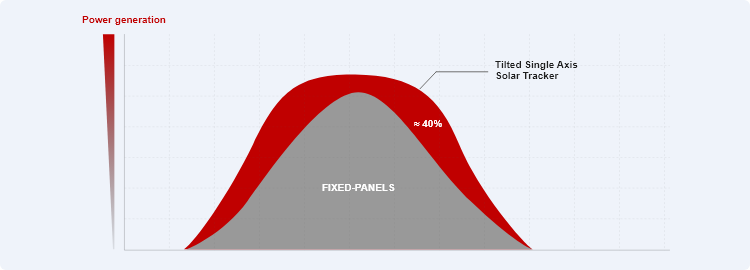

Compared with the fxed bracket,the power generation efrciency is increased by no less than 40% per year.

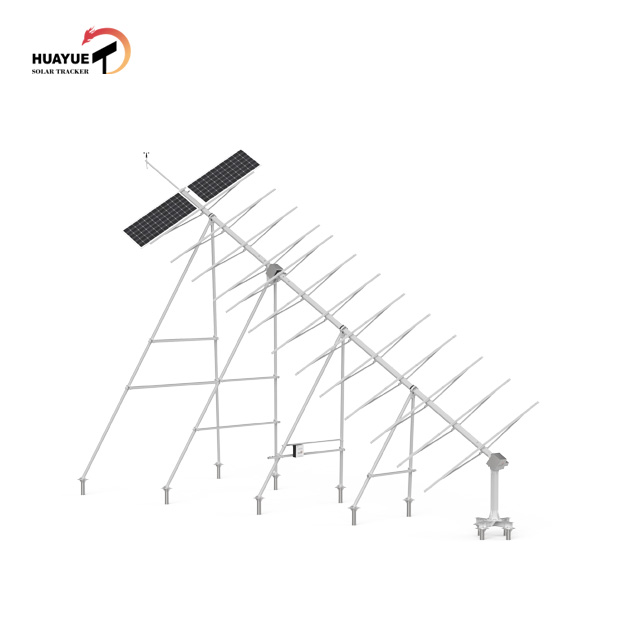

-Bracket Material

-PIug And Play

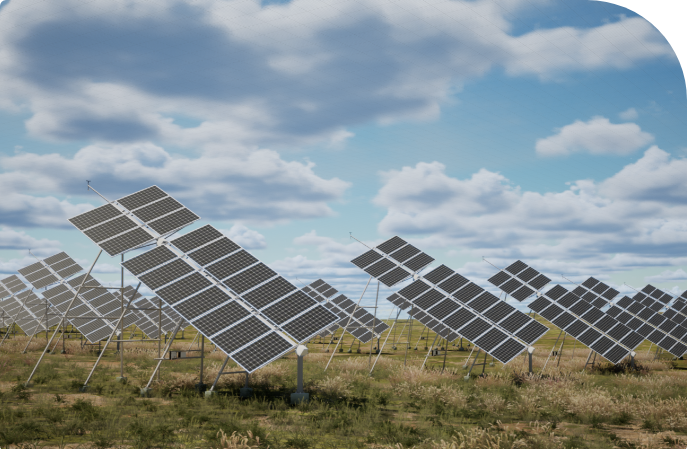

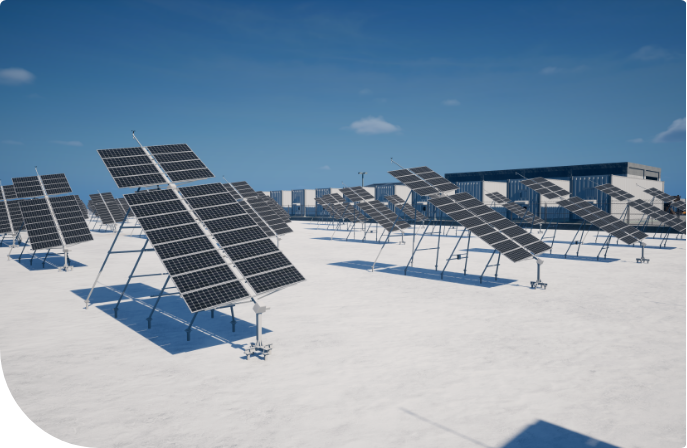

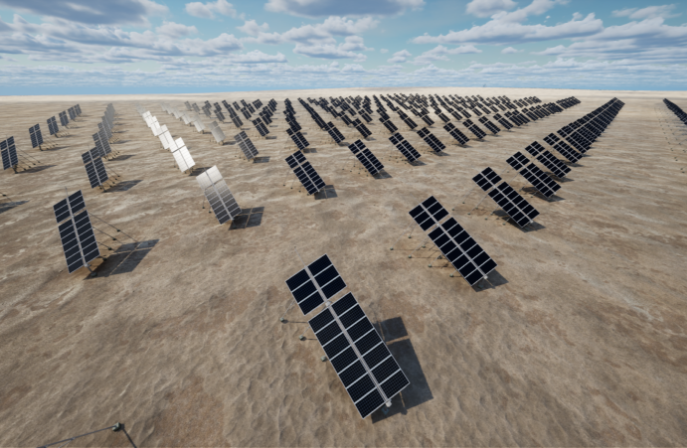

-APPLICATION SCENARIO



-SCADA

-Smart Tracking
Compared with the fxed bracket,the power generation efrciency is increased by no less than 40% per year.

-Bracket Material

-PIug And Play

-APPLICATION SCENARIO

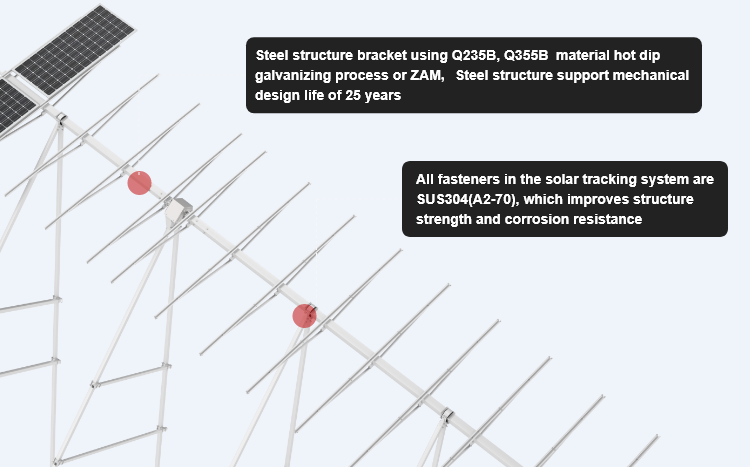

Main Material
ZAM ( S440~S550 ) / Q355B / Q235B
Fastener Material
304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°)
’-60°~+60° (Customizable)
Position Protection Mode
Sensor Protection + Software Protection
Backtracking Algorithm
Have (AI algorithm can be upgraded)
SCADA
Have (Functions and interface can be customized)
Local Network Communication
System Upgrade
Remote One-Click Upgrade + Local Upgrade
Survival Wind Speed
37~60 m/s (ASCE7-10 Wind Speed Can be Customized)

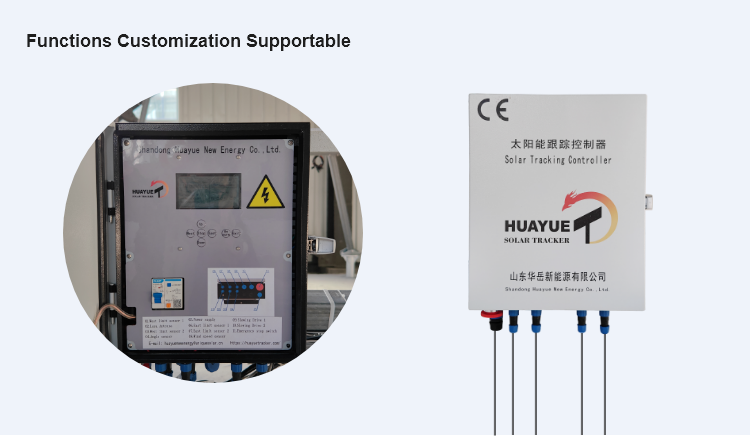

Control Algorithm
Astronomical Algorithm+Position Sensor Closed Loop
Control (+ Multi-Drive Synchronous Operation Control)
Power Supply Mode
AC100~305V power supply String DC250~1500V power supply
Remote Network Communication
Optional Wired:RS485/Optical fiber/Power line carrier
{"json":"[{\"index\":\"29\",\"tran_label\":\"Grid Area\",\"tran_value\":[\"≈ 70 ㎡\"]},{\"index\":\"30\",\"tran_value\":[\"2279mmx 1134mm\"],\"tran_label\":\"Size of Solar Panel\"},{\"index\":\"31\",\"tran_label\":\" Main Material\",\"tran_value\":[\"ZAM ( S440~S550 ) / Q355B / Q235B\"]},{\"index\":\"32\",\"tran_label\":\"Fastener Material\",\"tran_value\":[\"304 (A2-70) Flange Bolt + Flange Nut\"]},{\"index\":\"33\",\"tran_label\":\"Y Axis Tilt Angle (°)\",\"tran_value\":[\"’30°\"]},{\"index\":\"34\",\"tran_label\":\"Azimuth Tracking Range (°)\",\"tran_value\":[\"’-60°~+60° (Customizable)\"]},{\"index\":\"35\",\"tran_label\":\"Snow Load\",\"tran_value\":[\"1.6 KN/㎡\"]},{\"index\":\"36\",\"tran_label\":\"Protection Wind Speed\",\"tran_value\":[\"Have (17~22 m/s)\"]},{\"index\":\"37\",\"tran_label\":\"Protection Level\",\"tran_value\":[\"IP65\"]},{\"index\":\"38\",\"tran_label\":\"Operating Temperature(℃)\",\"tran_value\":[\"Default On -30℃~+70℃\"]},{\"index\":\"39\",\"tran_label\":\"Position Protection Mode\",\"tran_value\":[\"Sensor Protection + Software Protection\"]},{\"index\":\"40\",\"tran_label\":\"Night Return Mode\",\"tran_value\":[\"Have\"]},{\"index\":\"41\",\"tran_label\":\"Tracking Accuracy (°)\",\"tran_value\":[\"≤1°\"]},{\"index\":\"42\",\"tran_label\":\"Backtracking Algorithm\",\"tran_value\":[\"Have (AI algorithm can be upgraded)\"]},{\"index\":\"43\",\"tran_label\":\"SCADA\",\"tran_value\":[\"Have (Functions and interface can be customized)\"]},{\"index\":\"44\",\"tran_label\":\"Local Network Communication\",\"tran_value\":[\"LoRa / Zigbee\"]},{\"index\":\"45\",\"tran_label\":\"NCU Visual Operation\",\"tran_value\":[\"Have\"]},{\"index\":\"46\",\"tran_label\":\"System Upgrade\",\"tran_value\":[\"Remote One-Click Upgrade + Local Upgrade\"]},{\"index\":\"47\",\"tran_label\":\"Survival Wind Speed\",\"tran_value\":[\"37~60 m/s (ASCE7-10 Wind Speed Can be Customized)\"]},{\"index\":\"49\",\"tran_label\":\"Control Algorithm\",\"tran_value\":[\"Astronomical Algorithm+Position Sensor Closed Loop\"]},{\"index\":\"50\",\"tran_label\":\"\",\"tran_value\":[\"Control (+ Multi-Drive Synchronous Operation Control)\"]},{\"index\":\"53\",\"tran_label\":\"Power Supply Mode\",\"tran_value\":[\"AC100~305V power supply String DC250~1500V power supply\"]},{\"index\":\"55\",\"tran_label\":\"Remote Network Communication\",\"tran_value\":[\"Optional Wired:RS485/Optical fiber/Power line carrier\"]},{\"index\":\"56\",\"tran_label\":\"\",\"tran_value\":[\"Wireless:4G / WiFi\"]}]","type":"2"}
