The intelligent product design features wireless upgrades, on-button debugging, Ad hoc networking, and an AI port, providing convenience, intelligence, and speed via wireless transmission.

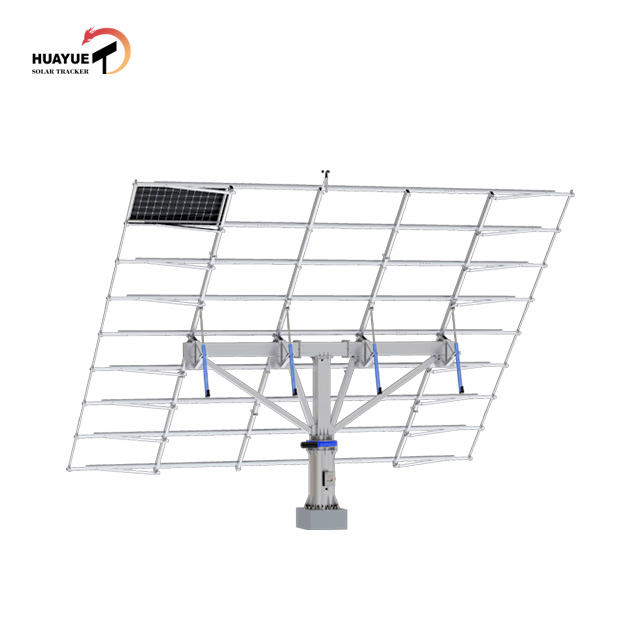

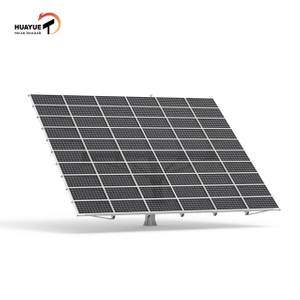

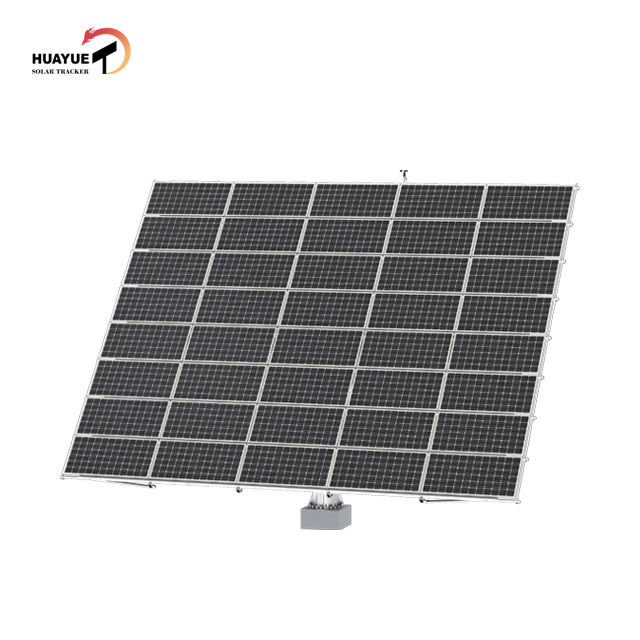

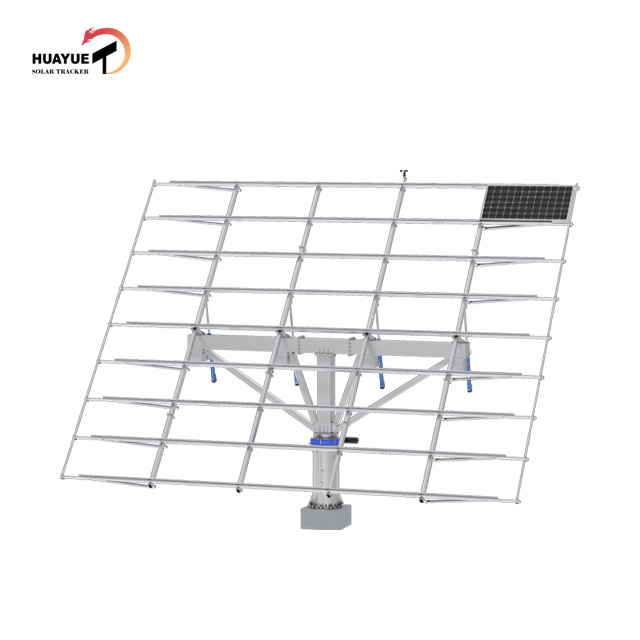

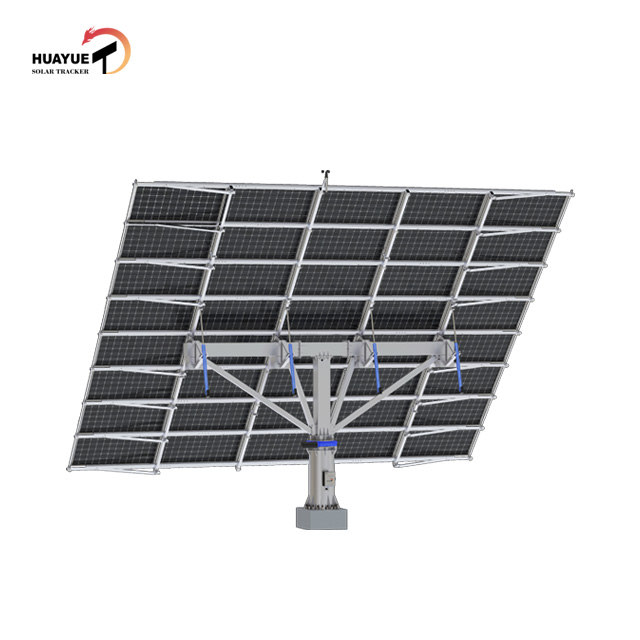

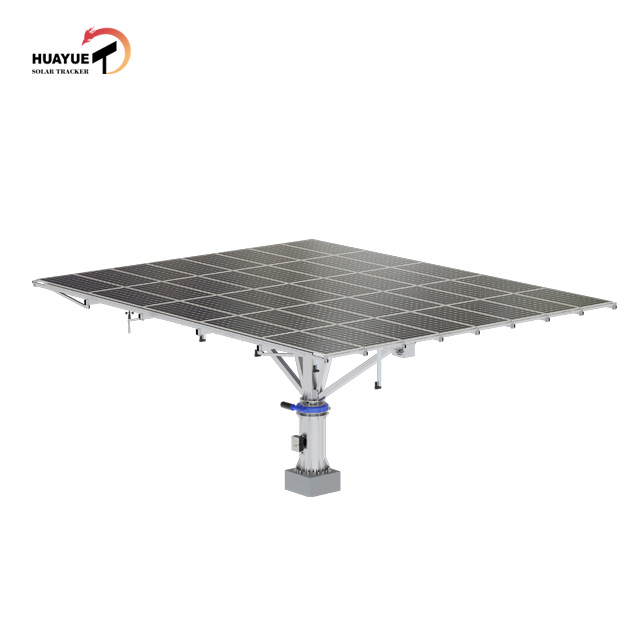

The dual axis solar tracker can keep the solar panel in the best direction and maximize the use of the power of the photovoltaic panel.
Product Details

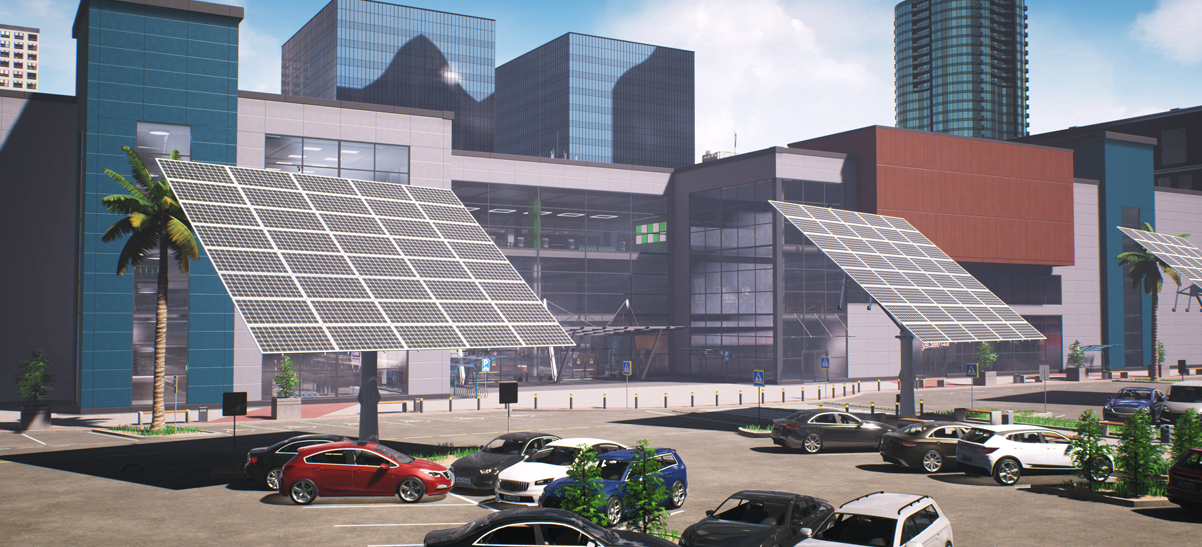

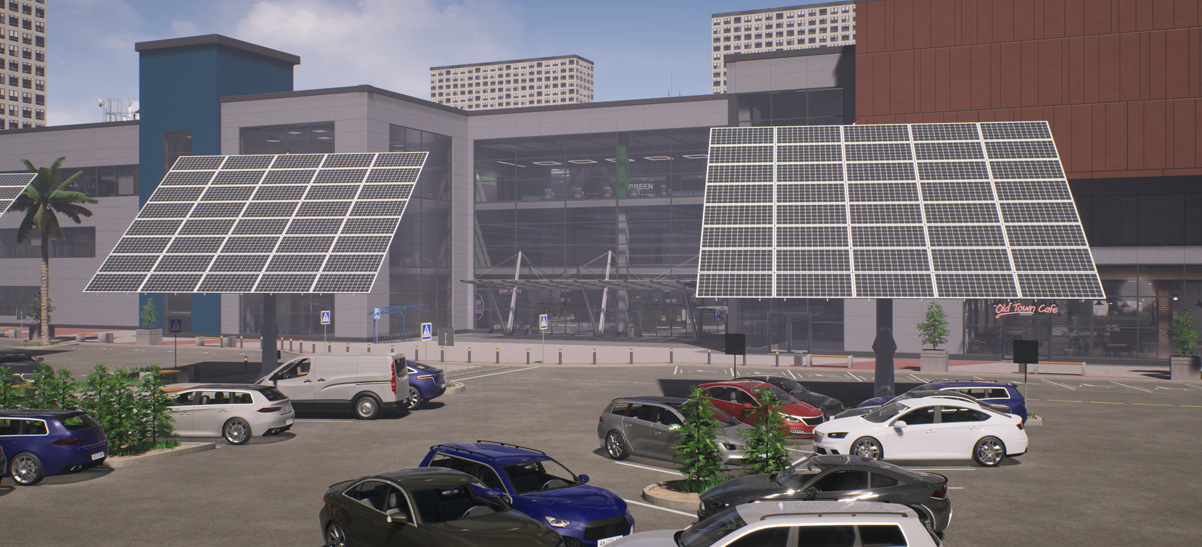

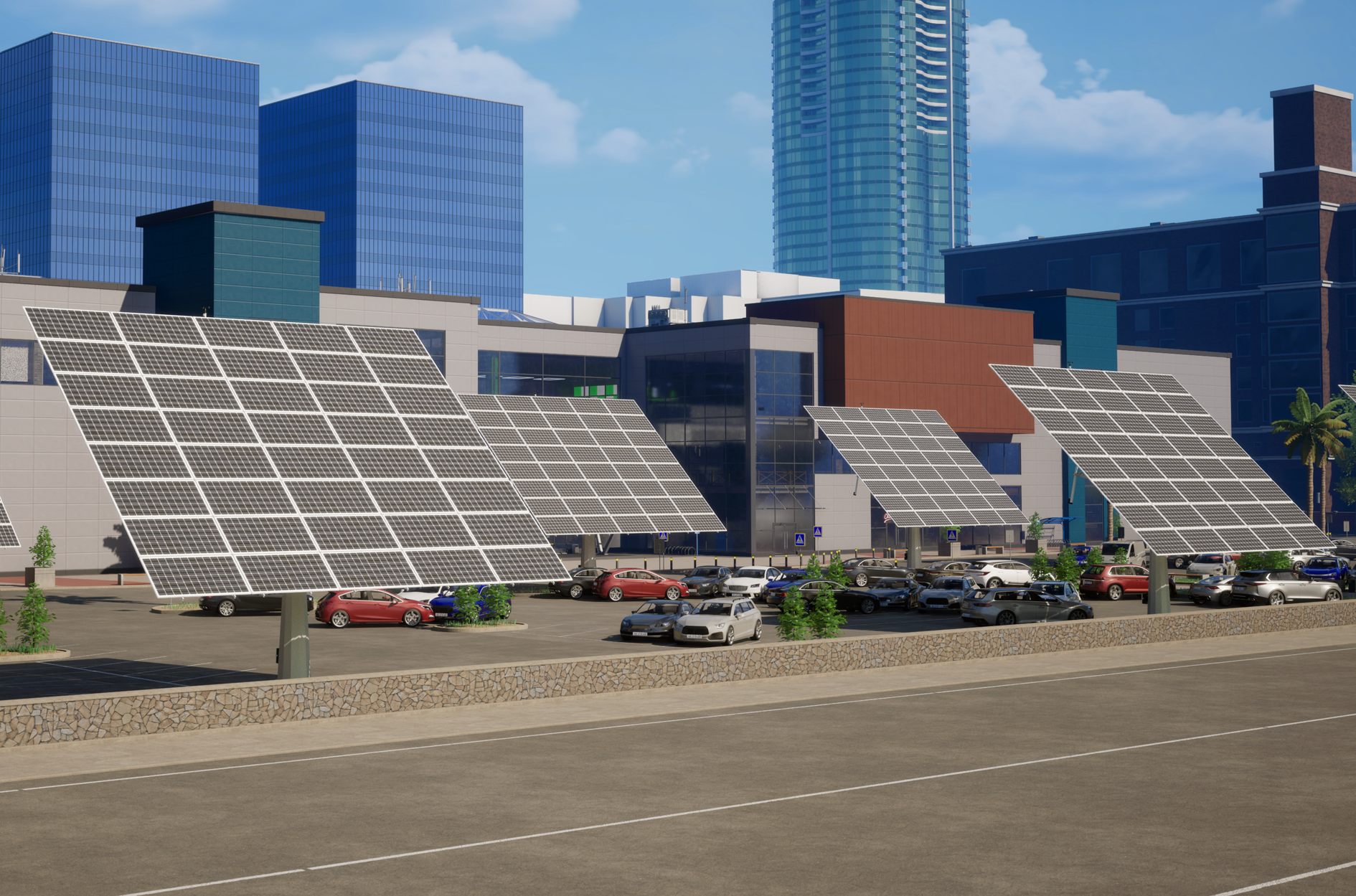

The Huayue dual-axis solar tracking system is designed to safeguard vehicles from sun and rain, effectively transforming solar energy into electrical power. This system supplies the requisite clean electricity for the charging of new energy vehicles and caters to the power demands of enterprises. Moreover, it optimizes the utilization of existing land assets, thus preventing the need for additional land acquisition.
The pillar design not only provides power but also offers shading functionality, adapting to various terrains, and utilizes Internet of Things monitoring to reduce operation and maintenance costs. The integrated design achieves efficient energy utilization, reduces annual emissions by 120kg, and pays back the investment in 5 to 7 years. It is suitable for a variety of scenarios, providing solutions for smart transportation and carbon neutrality goals.
{"type": "4"}
Grid Area
≈106㎡
Size of Solar Panel
2279mmx 1134mm
Main Material
Q235B /Q355B
Fastener Material
304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°)
-135°~+135°(Any Range Within -175°~+175°)
Altitude Tracking Range (°)
0~60°/(0~72°
Customizable)
Snow Load
2.0 KN/ ㎡
Protection Wind Speed
Have (17 m/s)
Survival Wind Speed
37~60 m/s (Customizable)
System Upgrade
Remote One-Click Upgrade + Local Upgrade
Rated Operational Voltage
DC24
Rated Operational Current
10A (Single Way)
Power Supply Mode
AC100~305V power supply
String DC250~1500V power supply
Control Algorithm
Astronomical Algorithm +
Position Sensor Closed Loop Control
(+ Multi-Drive Synchronous Operation Control)
Protection Level
IP65
Local Communication Mode
WIFI
Remote Communication Mode
WIFI or 4G (Optional)
Night Return Mode
Have
Backtracking Algorithm
Have (Al algorithm can be upgraded)
SCADA
Have (Functions and interface can be customized)
Automatic Snow Removal
Optional
Rotation Position Protection Mode
Sensor Protection + Software Protection
Tracking Cycle
Can be Set Up
TCU/STCU Visual Operation
Have
Operating Temperature(C)
General Default Configuration -30℃ ~ +70℃
Special Customized Configuration -50℃ ~ +85℃
