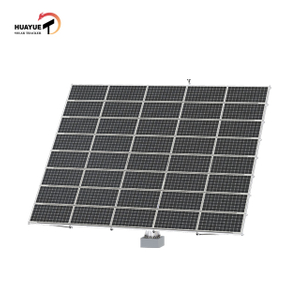

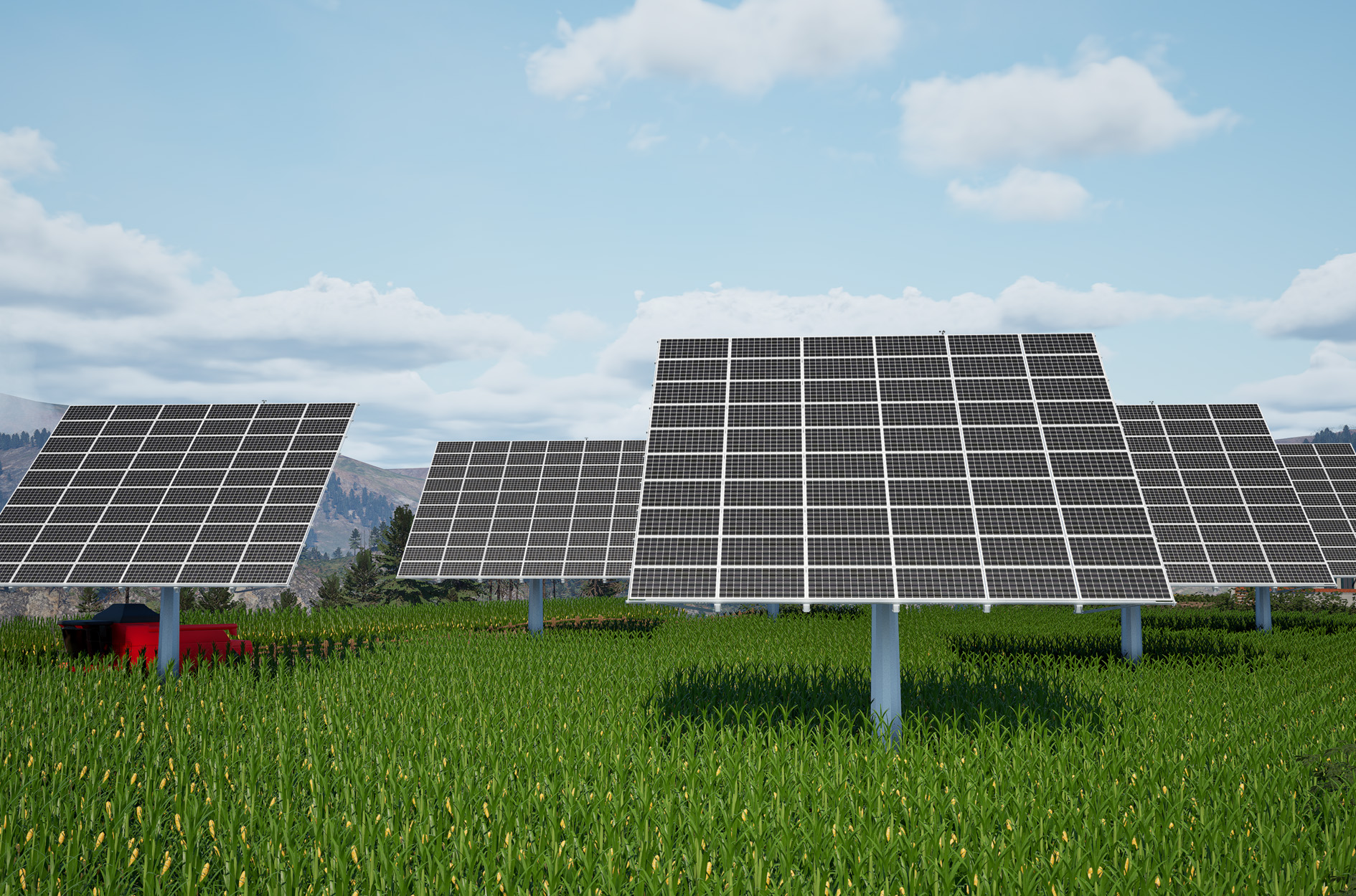

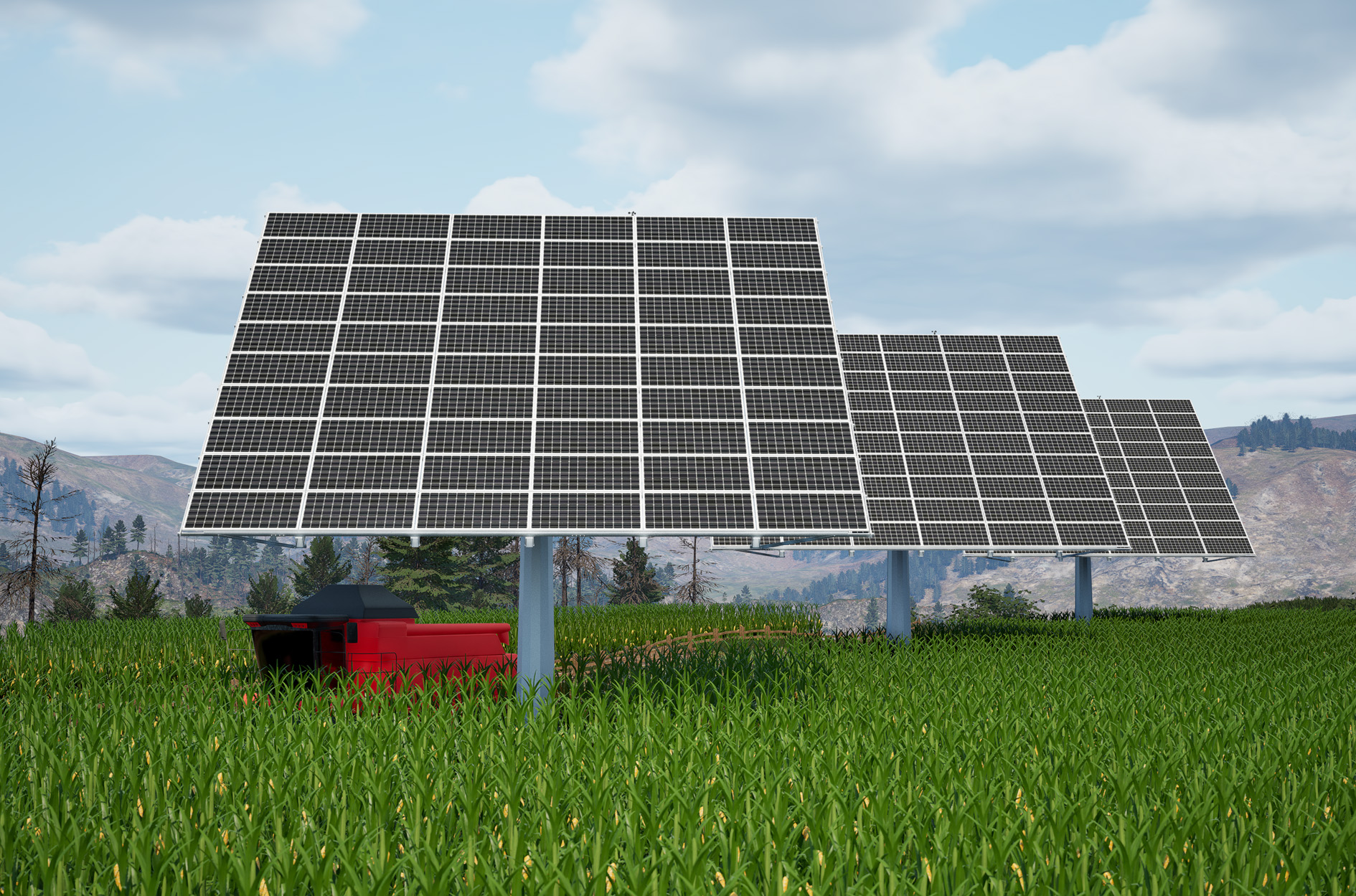

The Huayue solar tracking system is capable of efficiently harnessing solar energy, a form of clean energy, without utilizing significant land resources. Consequently, this system is particularly well-suited for agricultural photovoltaic projects. It is notably appropriate for vegetation that can derive benefits from partial shading and frost mitigation measures.

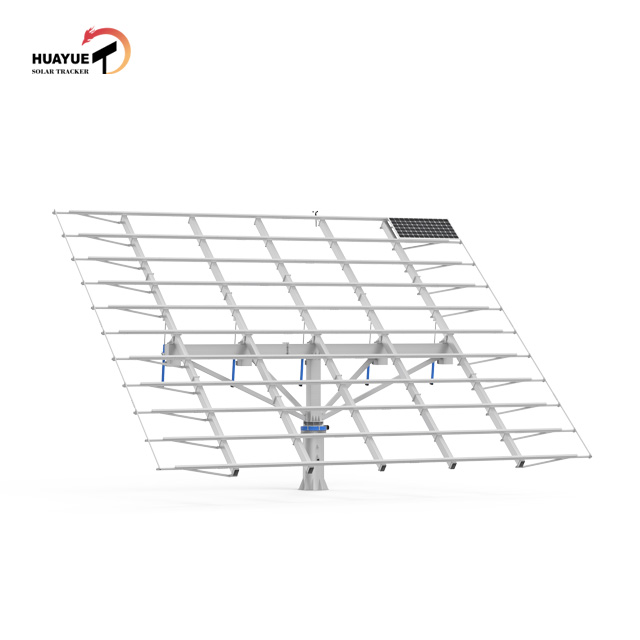

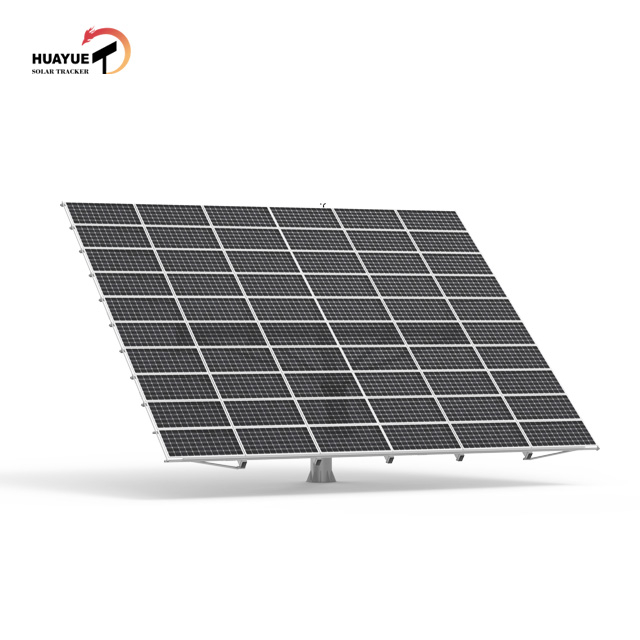

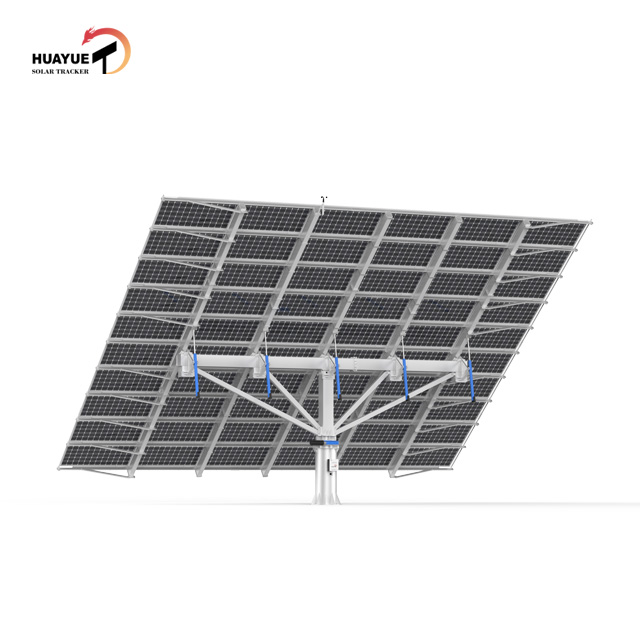

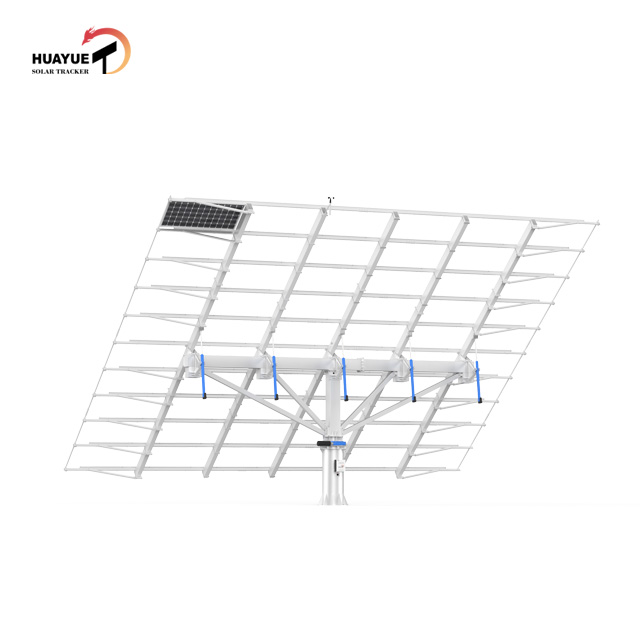

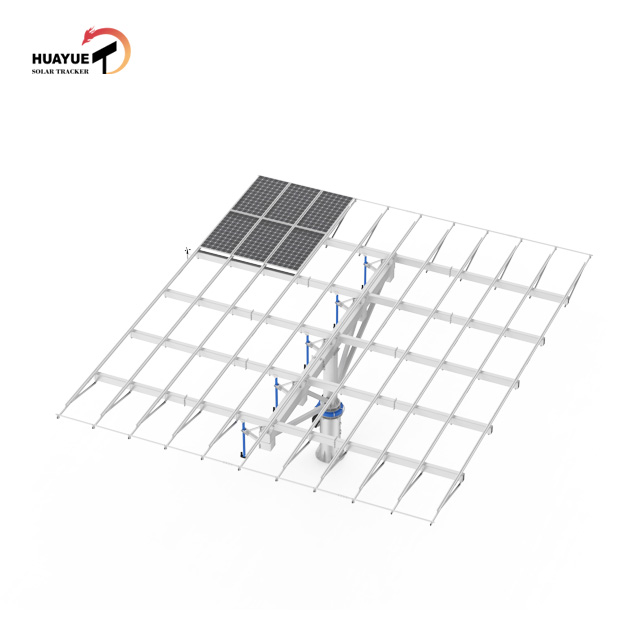

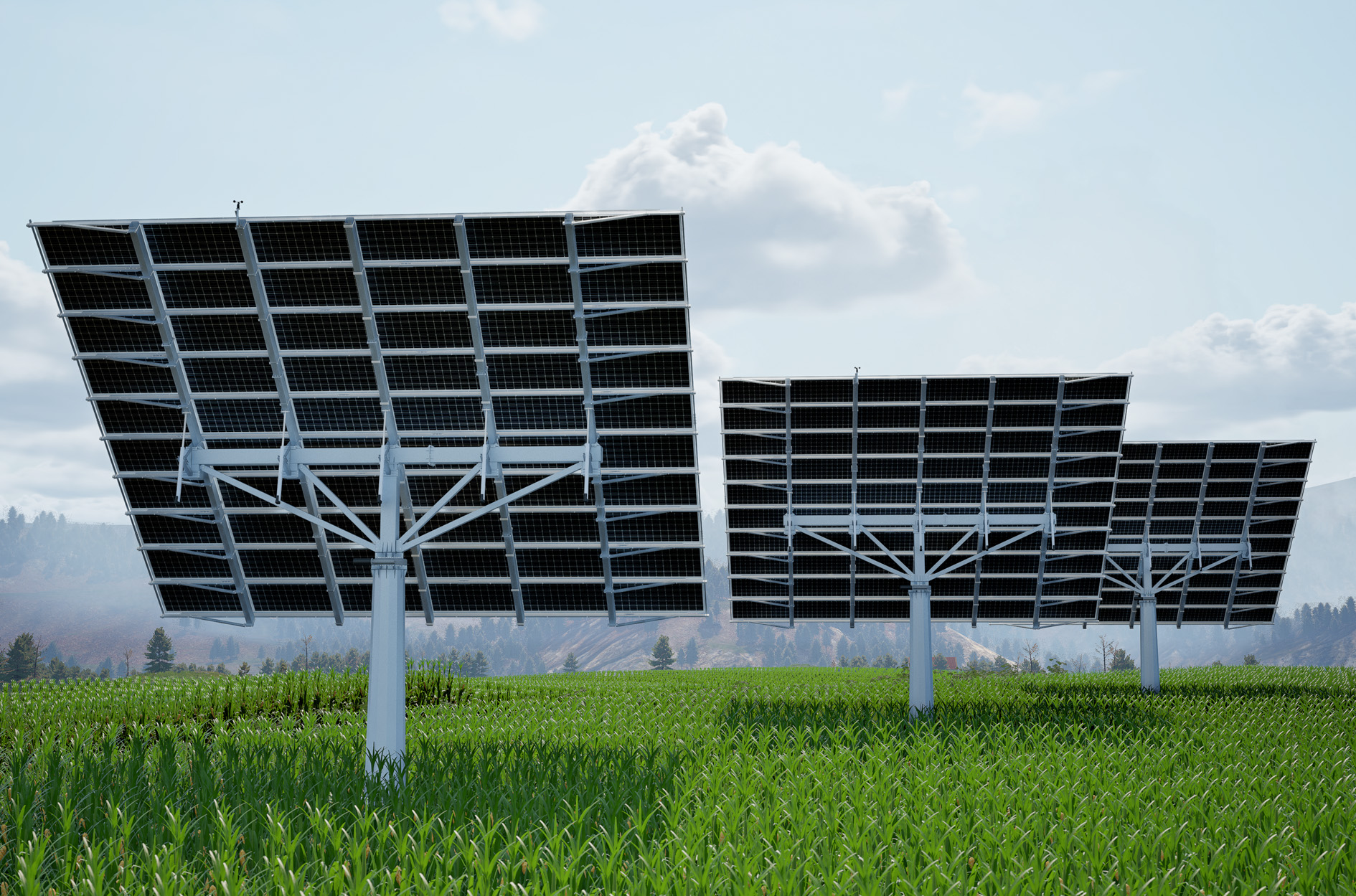

The dual-axis solar tracking system, paired with pillar-type supports in agriculture, enables a three-dimensional mode of power generation and farming. This technology boosts power efficiency to 50%-57%, allows shading angle adjustments for crop needs, and raises land value by 200%.
The system adapts to varied terrains, includes smart maintenance and wind resistance, and is broadly applied in fishery-light synergy and agricultural shading, fostering combined benefits in power and agriculture.
{"type": "4"}
Grid Area
≈159m²
Size of Solar Panel
2279mmx 1134mm
Main Material
Q235B /Q355B
Fastener Material
304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°)
-135°~+135°(Any Range Within -175°~+175°)
Altitude Tracking Range (°)
0~60°/(0~72°
Customizable)
Snow Load
2.0 KN/ ㎡
Protection Wind Speed
Have (17 m/s)
Survival Wind Speed
37~60 m/s (Customizable)
System Upgrade
Remote One-Click Upgrade + Local Upgrade
Rated Operational Voltage
DC24
Rated Operational Current
10A (Single Way)
Power Supply Mode
AC100~305V power supply
String DC250~1500V power supply
Control Algorithm
Astronomical Algorithm +
Position Sensor Closed Loop Control
(+ Multi-Drive Synchronous Operation Control)
Protection Level
IP65
Local Communication Mode
WIFI
Remote Communication Mode
WIFI or 4G (Optional)
Night Return Mode
Have
Backtracking Algorithm
Have (Al algorithm can be upgraded)

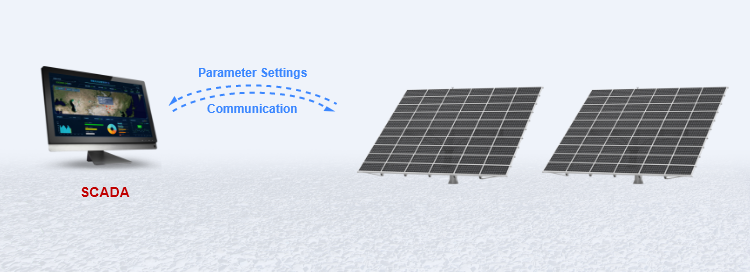

SCADA
Have (Functions and interface can be customized)
Automatic Snow Removal
Optional
Rotation Position Protection Mode
Sensor Protection + Software Protection
Tracking Cycle
Can be Set Up
TCU/STCU Visual Operation
Have
Operating Temperature(C)
General Default Configuration -30℃ ~ +70℃
Special Customized Configuration -50℃ ~ +85℃
