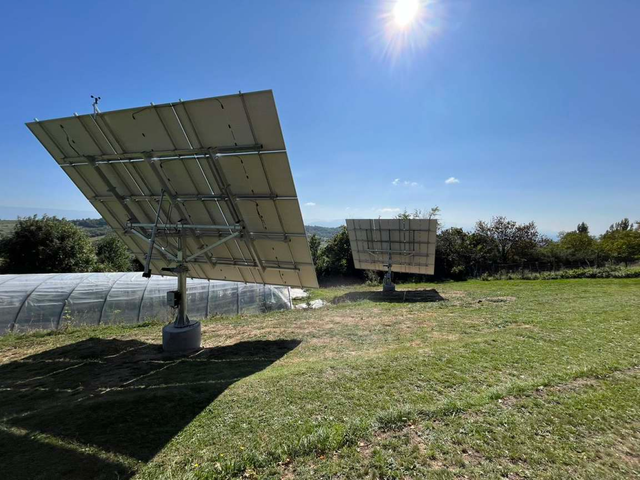

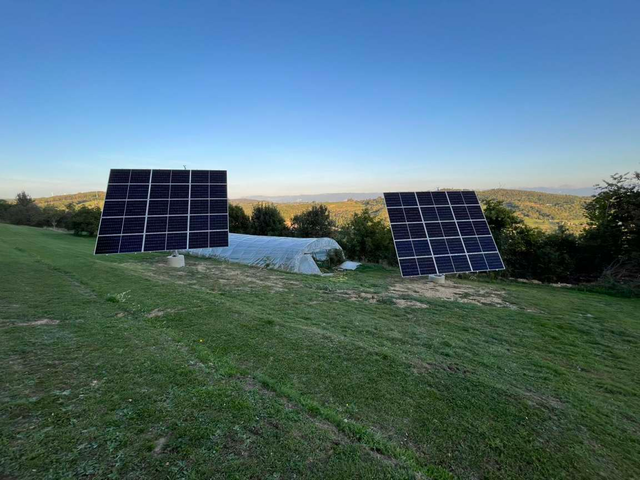

The dual axis solar tracker can keep the solar panel in the best direction and maximize the use of the power of the photovoltaic panel.
-HEIGHTENED COLUMN (OPTIONAL)
-UNIQUE PILE FOUNDATION
-APPLICATION SCENARIO
Compared with traditional rooftop power generation systems, it can greatly improve conversion efficiency, utilization rate, etc., and generate 50% more electricity than traditional rooftop systems, because it can make the solar panels perpendicular to the sun at an angle of 90° from morning to night, not limited by the change of the sunlight reception angle, and always maintain a stable power supply.

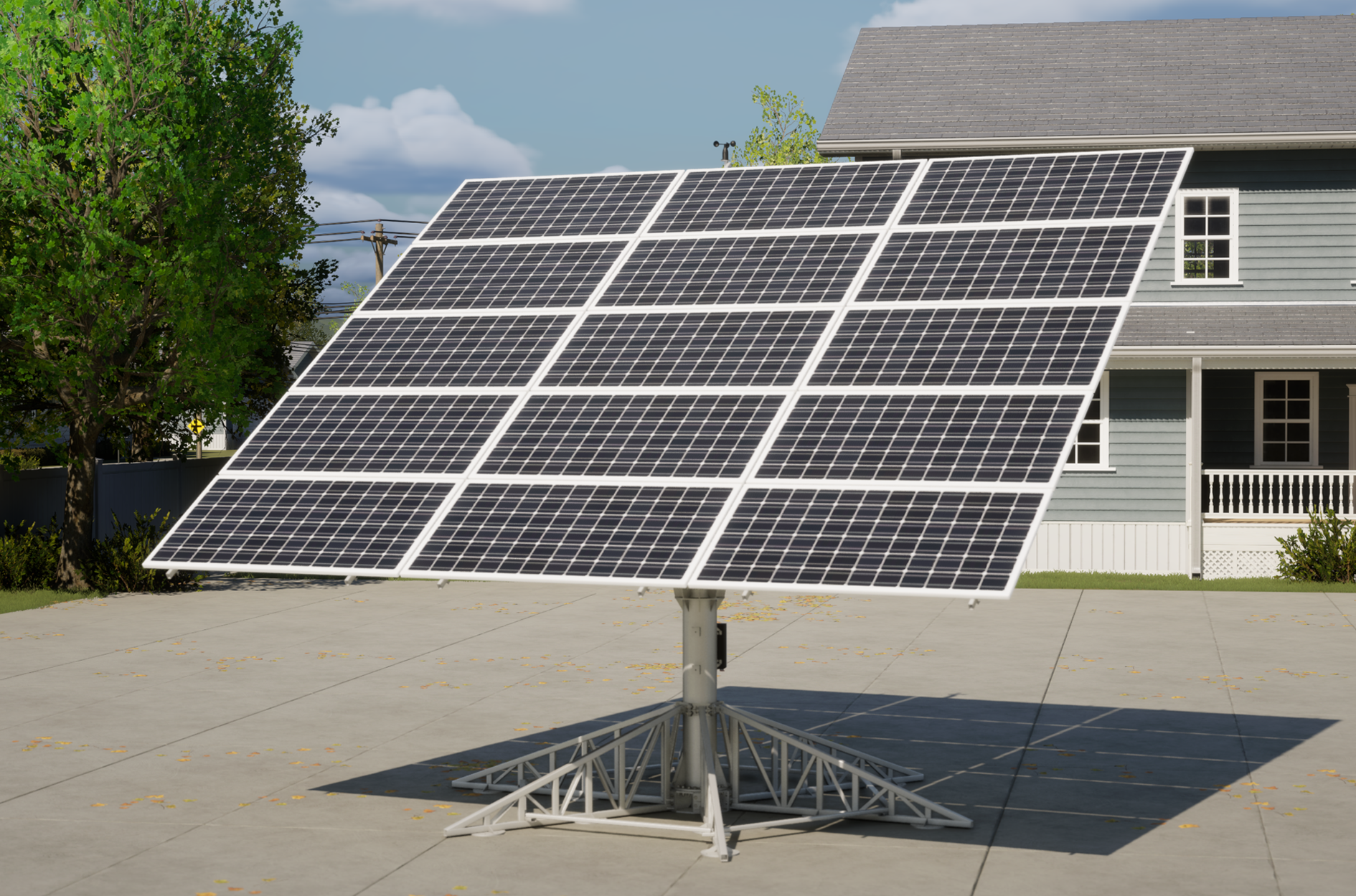

The construction is simple, and a steel structure base can be used to avoid complex concrete construction and be more environmentally friendly. At the same time, the construction location can be changed at will.
The solar energy system integrated with the energy storage inverter and energy storage lithium battery can directly store the excess energy generated in the built-in lithium battery, and use the battery to power household appliances, increasing the average utilization rate of the traditional solar power generation system from 20% to 60%, which can not only cover the daytime electricity consumption, but also effectively meet the high-power electricity consumption at night, and fully meet the power supply needs of households.
-SCADA
-SMART TRACKING
The dual axis solar tracker can keep the solar panel in the best direction and maximize the use of the power of the photovoltaic panel.
-HEIGHTENED COLUMN (OPTIONAL)
-UNIQUE PILE FOUNDATION
-APPLICATION SCENARIO
Compared with traditional rooftop power generation systems, it can greatly improve conversion efficiency, utilization rate, etc., and generate 50% more electricity than traditional rooftop systems, because it can make the solar panels perpendicular to the sun at an angle of 90° from morning to night, not limited by the change of the sunlight reception angle, and always maintain a stable power supply.
The construction is simple, and a steel structure base can be used to avoid complex concrete construction and be more environmentally friendly. At the same time, the construction location can be changed at will.
The solar energy system integrated with the energy storage inverter and energy storage lithium battery can directly store the excess energy generated in the built-in lithium battery, and use the battery to power household appliances, increasing the average utilization rate of the traditional solar power generation system from 20% to 60%, which can not only cover the daytime electricity consumption, but also effectively meet the high-power electricity consumption at night, and fully meet the power supply needs of households.
Grid Area
≈ 40 ㎡
Size of Solar Panel
2279mmx 1134mm
Main Material
Q235B /Q355B
Fastener Material
304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°)
-135°~+135°(Any Range Within -175°~+175°)
Altitude Tracking Range (°)
0~60°/(0~72°Customizable)
Snow Load
2.0 KN/ ㎡
Protection Wind Speed
Have (17 m/s)
Survival Wind Speed
37~60 m/s (Customizable)
System Upgrade
Remote One-Click Upgrade + Local Upgrade
Rated Operational Voltage
DC24
Rated Operational Current
10A (Single Way)
Power Supply Mode
AC100~305V power supply
String DC250~1500V power supply
Control Algorithm
Astronomical Algorithm +Position Sensor Closed Loop Control
(+ Multi-Drive Synchronous Operation Control)
Protection Level
IP65
Local Communication Mode
WIFI
Remote Communication Mode
WIFI or 4G (Optional)
Night Return Mode
Have
Backtracking Algorithm
Have (Al algorithm can be upgraded)
SCADA
Have (Functions and interface can be customized)
Automatic Snow Removal
Optional
Rotation Position Protection Mode
Sensor Protection + Software Protection
Tracking Cycle
Can be Set Up
TCU/STCU Visual Operation
Have
Operating Temperature(C)
General Default Configuration -30℃ ~ +70℃
Special Customized Configuration -50℃ ~ +85℃
