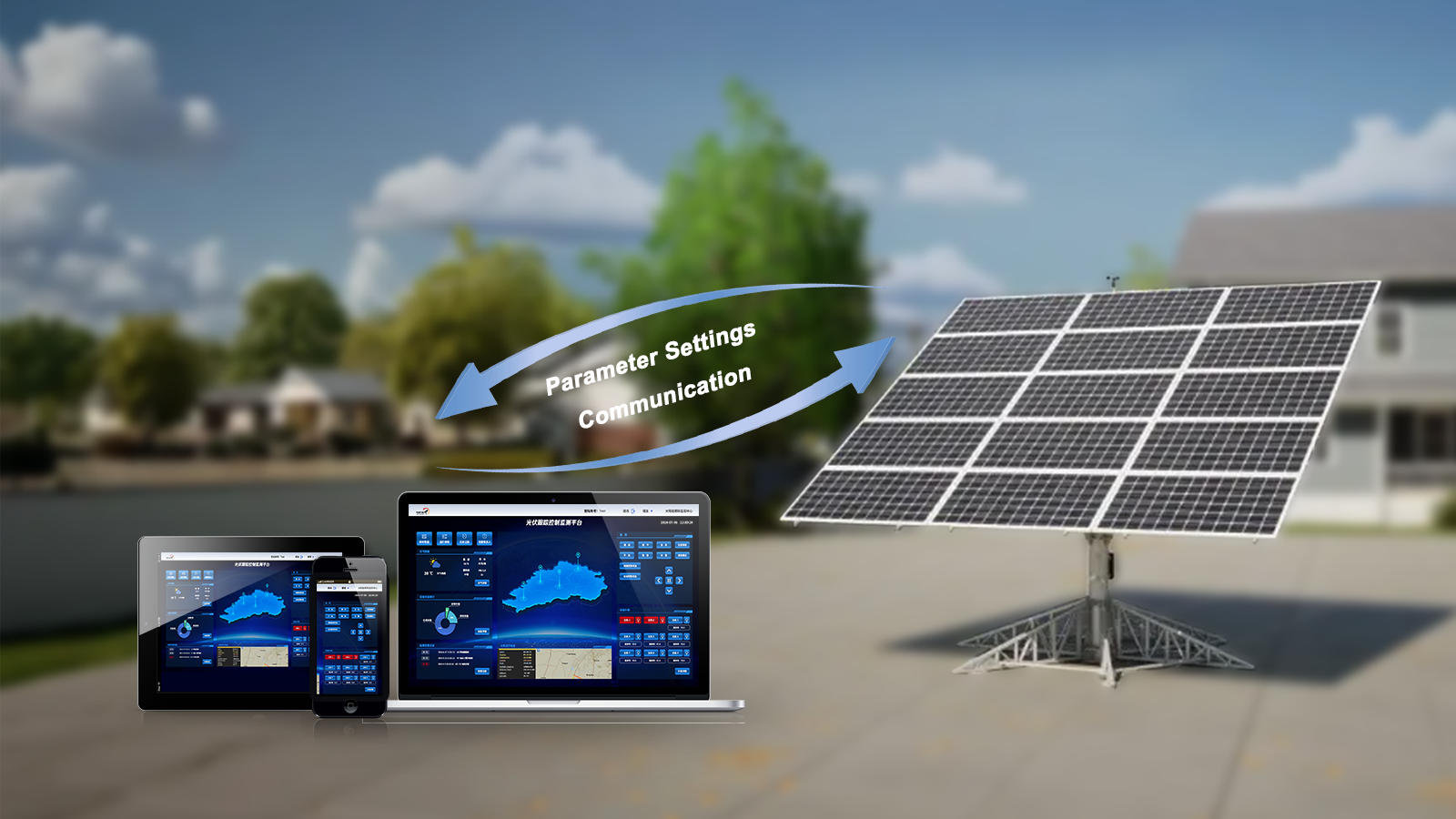

The intelligent product design features wireless upgrades, on-button debugging, Ad hoc networking, and an AI port, providing convenience, intelligence, and speed via wireless transmission.

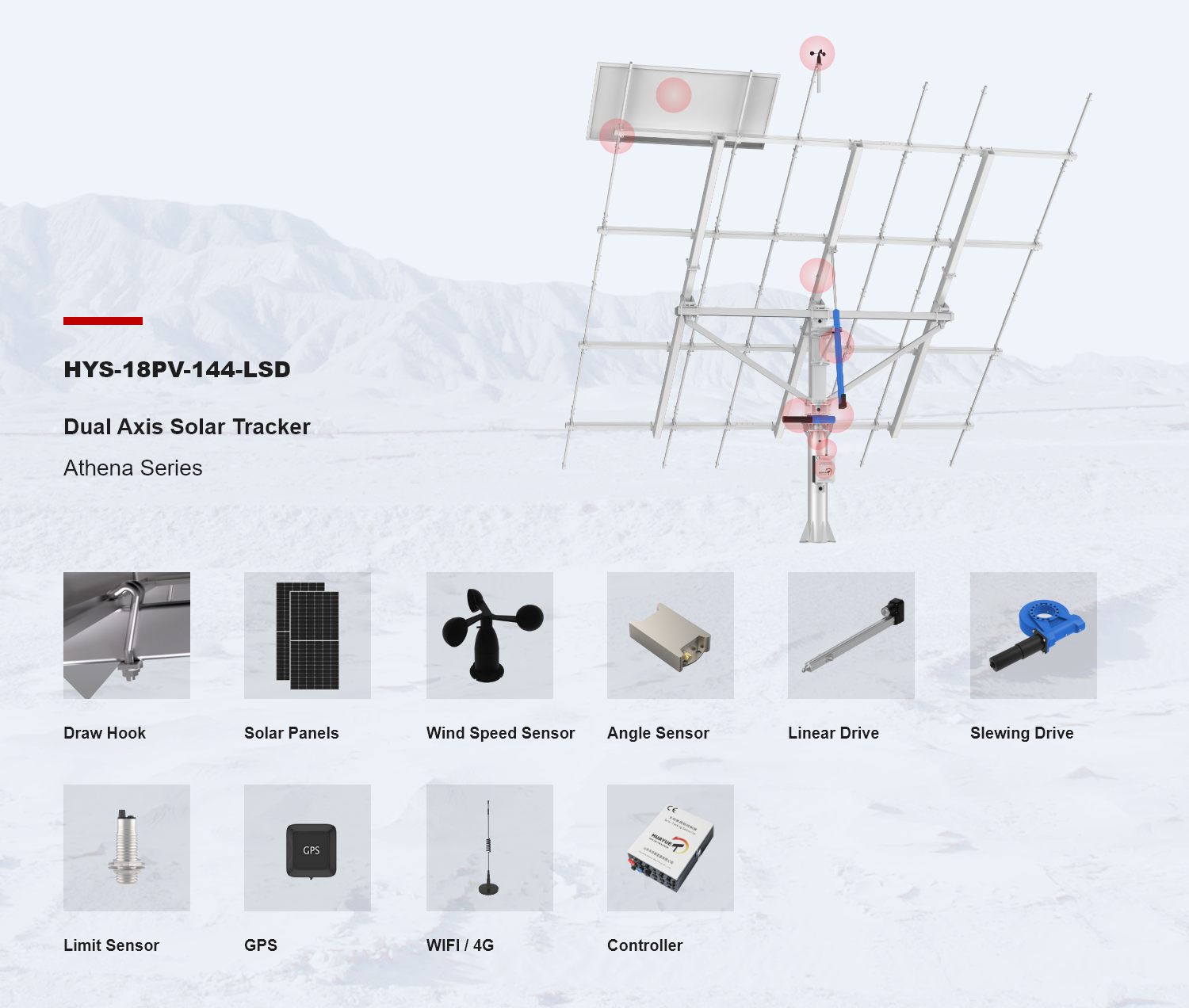

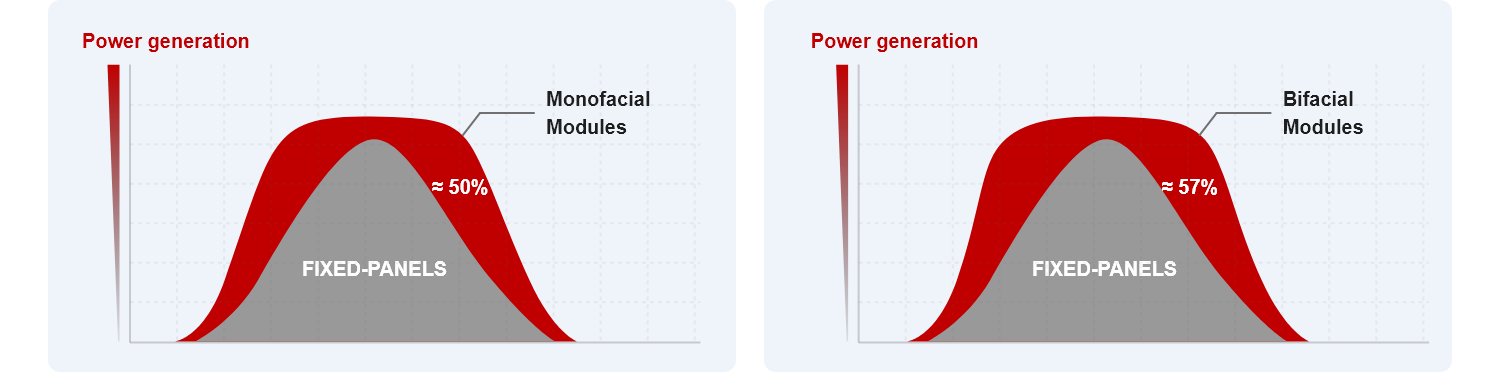

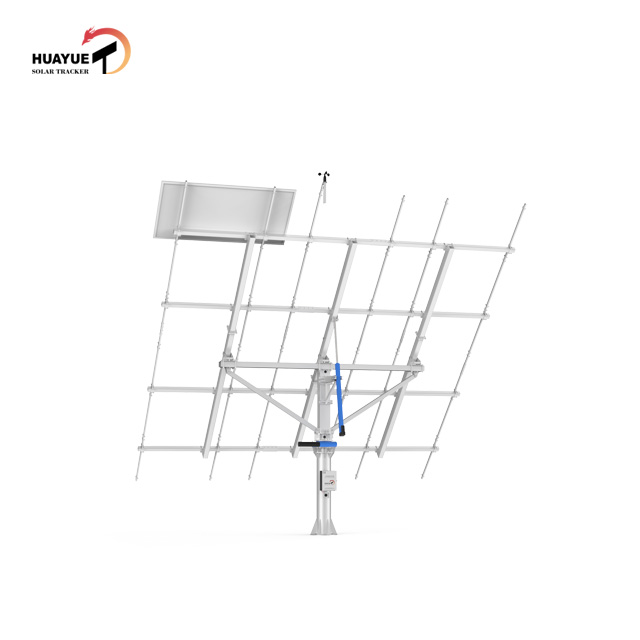

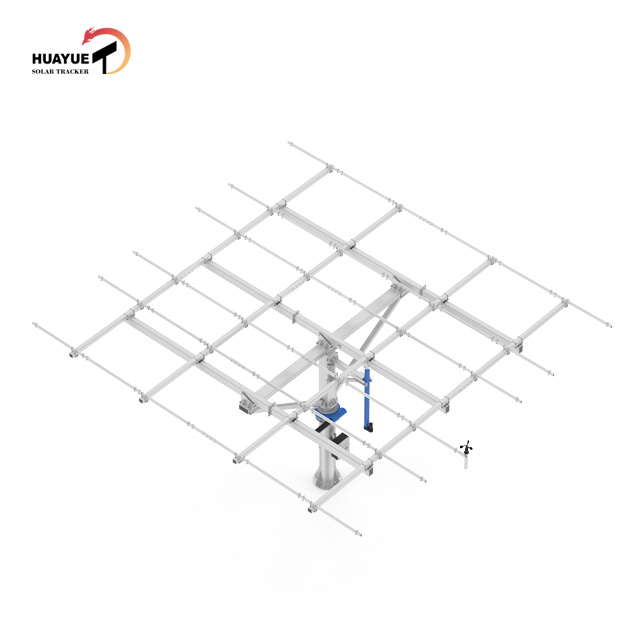

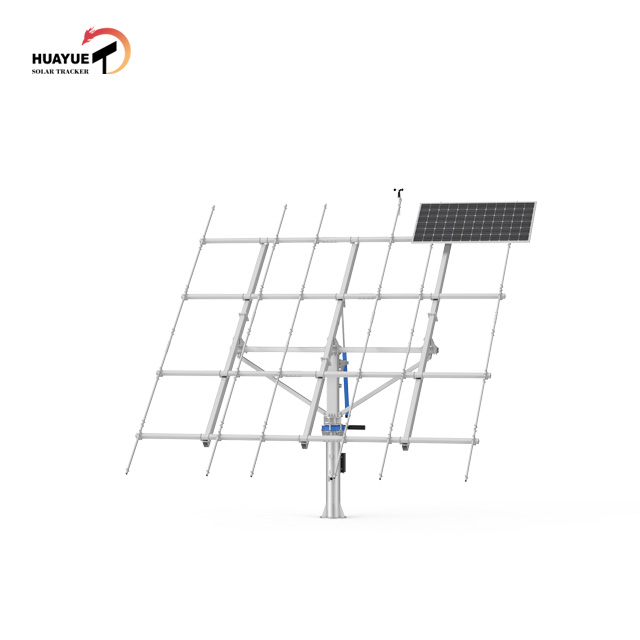

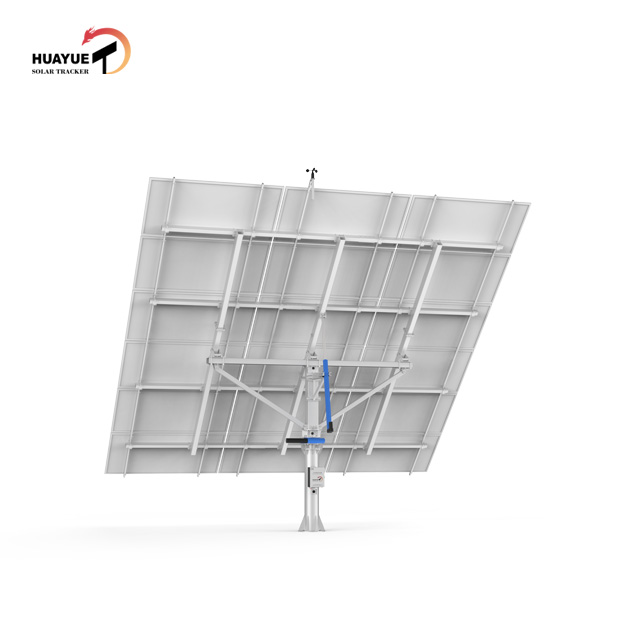

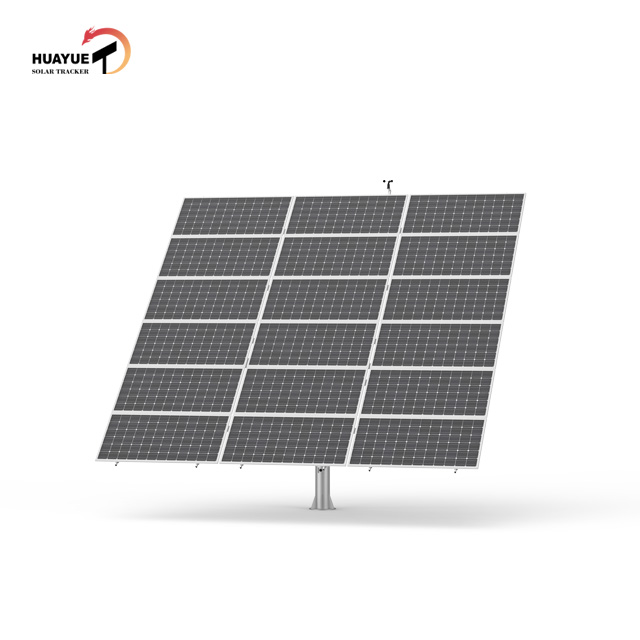

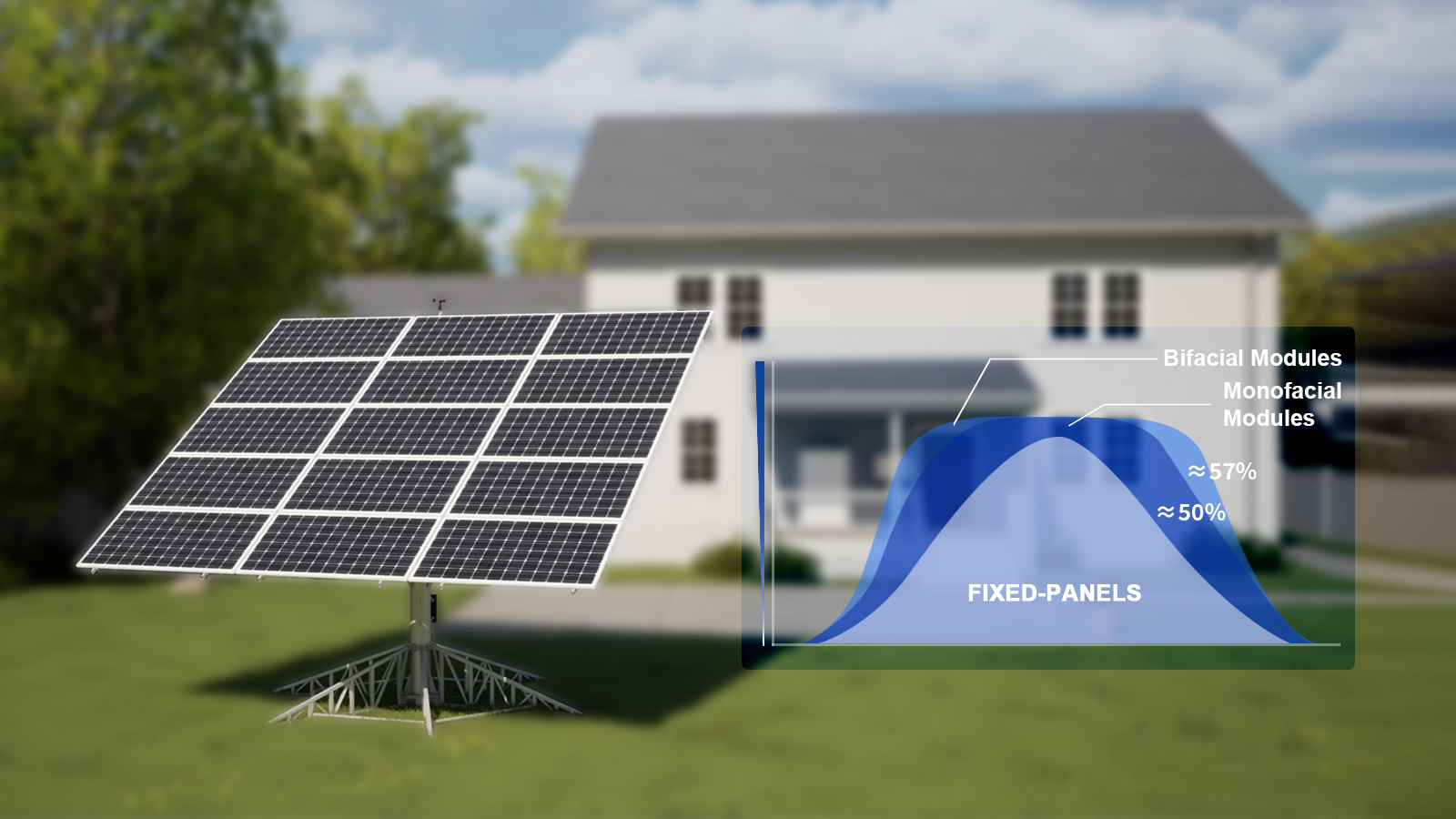

The dual-axis solar tracker ensures that the solar panel maintains the optimal orientation, thereby maximizing the efficiency of the photovoltaic panel's power generation.

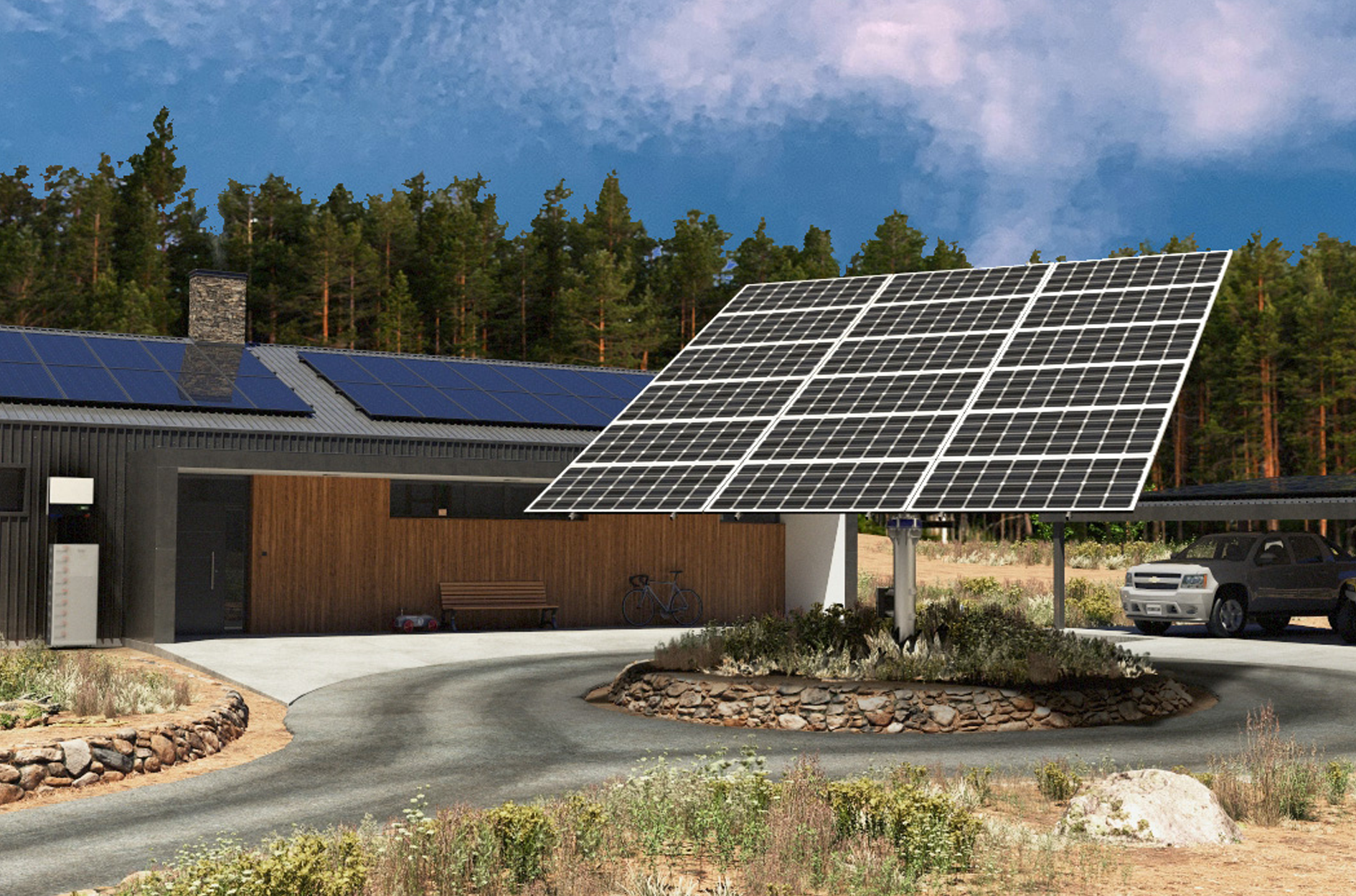

Consequently, it ensures a consistent and dependable supply of electrical power to household devices, even when solar generation is inadequate.

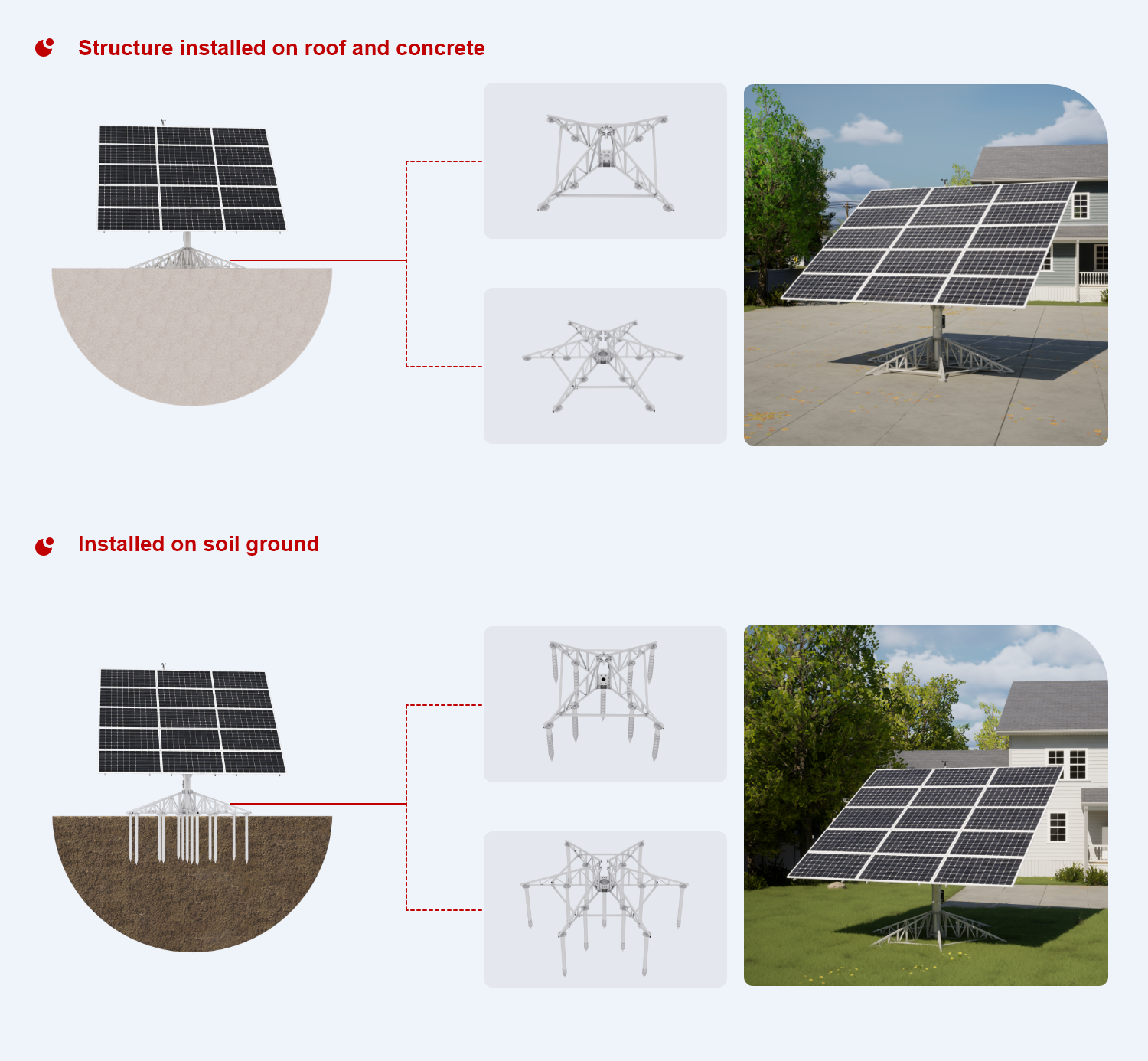

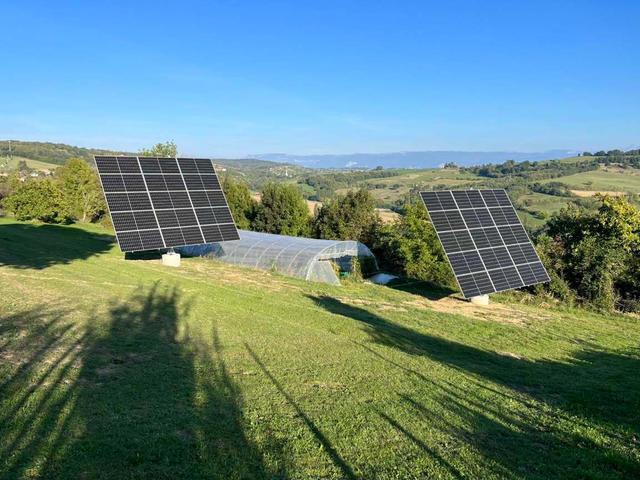

During construction, steel base simplify the process, avoiding complex concrete work and aligning with environmental standards. Site selection is flexible, adaptable to needs.
01
06
{"type": "4"}
Grid Area
≈ 47 ㎡
Size of Solar Panel
2279mmx 1134mm
Main Material
Q235B /Q355B
Fastener Material
304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°)
-135°~+135°(Any Range Within -175°~+175°)
Altitude Tracking Range (°)
0~60°/(0~72°Customizable)
Snow Load
2.0 KN/ ㎡
Protection Wind Speed
Have (17 m/s)
Survival Wind Speed
37~60 m/s (Customizable)
System Upgrade
Remote One-Click Upgrade + Local Upgrade
Rated Operational Voltage
DC24
Rated Operational Current
10A (Single Way)
Power Supply Mode
AC100~305V power supply
String DC250~1500V power supply
Control Algorithm
Astronomical Algorithm +Position Sensor Closed Loop Control
Protection Level
IP65
Local Communication Mode
WIFI
Remote Communication Mode
WIFI or 4G (Optional)
Night Return Mode
Have
Backtracking Algorithm
Have (Al algorithm can be upgraded)

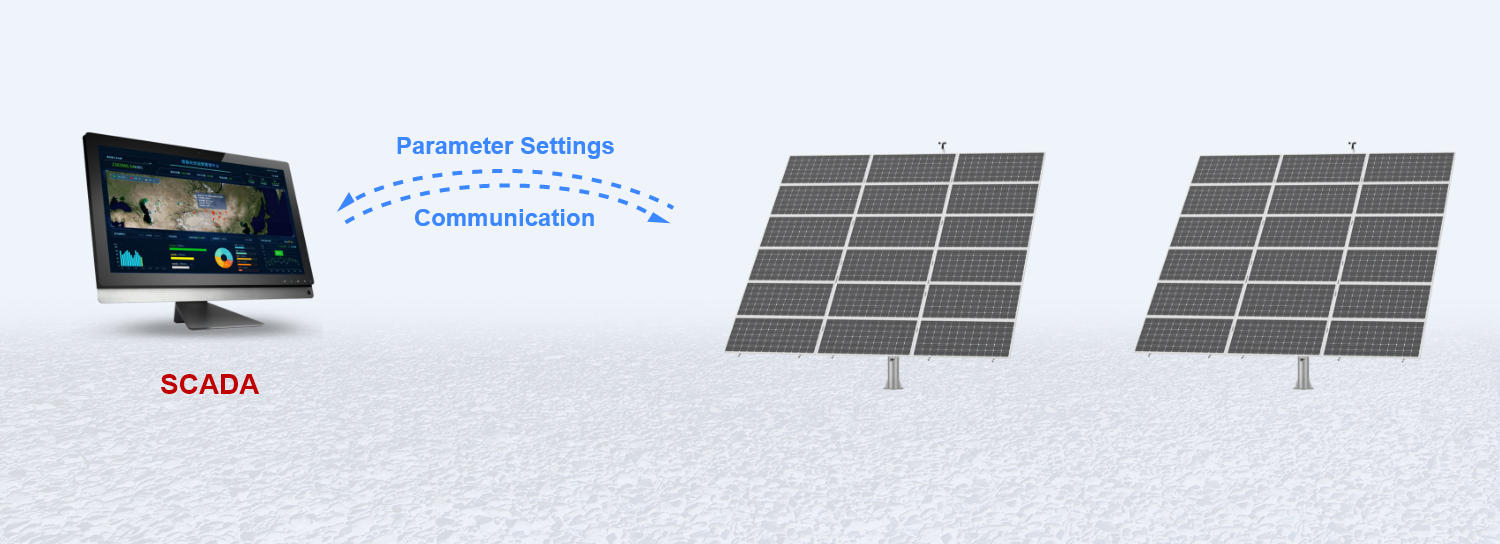

SCADA
Have (Functions and interface can be customized)
Automatic Snow Removal
Optional
Rotation Position Protection Mode
Sensor Protection + Software Protection
Tracking Cycle
Can be Set Up
TCU/STCU Visual Operation
Have
Operating Temperature(C)
General Default Configuration -30℃ ~ +70℃
Special Customized Configuration -50℃ ~ +85℃
